Calculul indicilor utilizaţi pentru cuantificarea expansiunii rapide de maxilar

 Calculations used for assessment of rapid maxillary expansion

First published: 10 martie 2016

Editorial Group: MEDICHUB MEDIA

DOI: 10.26416/Orl.30.1.2016.525


Rapid maxillary expansion is defined as the release of medio-palatine suture using an orthopedic forces. The role of this procedure is to expand  the upper jaw in order to achieve the  broadening of the upper arch. This study was initiated to quantify the effects of disjunction and post- treatment bone changes, after an adequate contention which lasted for three weeks. This study  is  carried on laboratory animals (common breed rabbit) to determine tensile strength and the elasticity modulus of  biological materials  used in orthdodontics. The results of the study are consistent with those reported in the literature reference.

rapid maxillary expansion, tensile strength, elasticity modulus


Expansiunea rapidă de maxilar este definită ca eliberarea suturii medio-palatine folosind  forțe ortopedice. Rolul acestei proceduri este de a dilata maxilarul superior pentru a obține  lărgirea  arcadei maxilare. Studiul de față este realizat pentru a cuantifica efectele disjuncției și modificarile de la nivelul osos maxilar, ulterioare utilizării acestei metode de tratament ortodontic. Cercetarea este realizată pe animale de laborator (iepure  de rasă comună) pentru a determina rezistența la tracțiune și modulul de elasticitate a materialelor biologice utilizate în ortodonție. Rezultatele studiului sunt în concordanță cu cele raportate în literatura de referință.

Calculul  indicilor utilizaţi pentru cuantificarea expansiunii rapide de maxilar

Rapid maxillary expansion (RME) has been proposed by Angle since the 21st century, in order to correct jaw constriction(2,4). RME is a routine procedure in orthodontics, with the primary goal of expanding the narrow maxillary arch. Large forces used during the activation of an expansion screw split the intermaxillary suture(10,11,13), thus increasing in width both the basal bone and the width of the dental arch perimeter(1). Since 1920, Mesnard demonstrated radiologically that medio-palatine suture may be opened by using the expansion device and the resulting space would be filled with bone during 4-6 weeks(5,6,12).
As far as the tensile testing of materials regards, of biological materials in this case, this is an adequate method to determine their behavior on axial tensile loads. The data from the tests are used to determine tensile strength and the elasticity modulus.
The tensile stress is determined by an applied load, which extends the material on the forces’ axis application.
Stress voltage is a condition caused by pregnancy, which extends applicas forces.
Uniaxial stress expresses through:
ORL 30 (1) 2016_mic-24-3

where F is the force acting on area A (m2). The approach to linear elastic fracture mechanics is to estimate the amount of energy required to raise a pre-existing crack in a brittle material.
ORL 30 (1) 2016_mic-24

Where E is the Young’s modulus (the elasticity modulus) - specific for the tested material, γ is the surface energy per unit area of the crack and a is the crack length on side, whereas 2a represents the crack length inside a flat surface.

The expression

ORL 30 (1) 2016_mic-24-2
is postulated as a parameter referred to as the breaking strength. If the stress is small, the material can undergo an elongation with a return to the original size (after the stress is released)(3). This is called the elastic deformation, since the material returns to its original size. If the material is stressed beyond the elastic limit, it will remain in a deformed state after removal of the load (phenomenon called plastic deformation).

The uniform uniaxial stress

A parameter called the stress intensity factor (K) is used to determine the tensile strength of most materials. Stress intensity factor (K) for a 2a crack length(14,16) at right angles in an infinite plane, subject to a uniform force field stress (σ) is:
ORL 30 (1) 2016_mic-24-5

The medio-palatine suture could be considered as a pre-existing crack.Therefore, to calculate the necessary forces(7) in RME we consider a crack centrally located in a finite plate.

Initiated crack on a middleflat surface under uniaxial stress conditions

If the crack is centrally located along the width (d≠b), the stress intensity factor at the location A has the form (Figure 1):
ORL 30 (1) 2016_mic-25-1

where C n factors can be found in tables for various values of d. A similar expression can be found for the crack tip B (Figure 1).

Material and method

Assuming the occurence of medio-palatine disjunction to be initiated in the middle of a flat surface, under uniaxial stress conditions (as detailed in Figure 1) the expansionat of the medio-palatine suture was measured, for a range of experimental animals, which were prepared according to a predetermined protocol.
For the current study were used a total of 12 rabbit dried skulls.
They emerged from an in vivo study on 8 common breed rabbits, following the rapid disjunction; the disjunctor remained anchored to the side zone for a period of 24 days.
After euthanasia, according to the working protocol, followed the procedure of posting organic substrate from the support of animal bone, using a concentrated solution of NaOCl 9% at a temperature of 55⁰C. After drying, it resorted to measurements so that was taken into account intermolar distance on first maxillary molars (Figure 2, Figure 4).
Four dry skulls served as control to benchmark expansion coefficient obtained at a distance of 24 days, after rapid disjunction, enabling the disjunctor applied over this period to maintain the result and conservation reossification trend (Figure 3).
We further note with e (where e = 2h) the medio-palatine expansion. The results obtained are shown in Table 1.

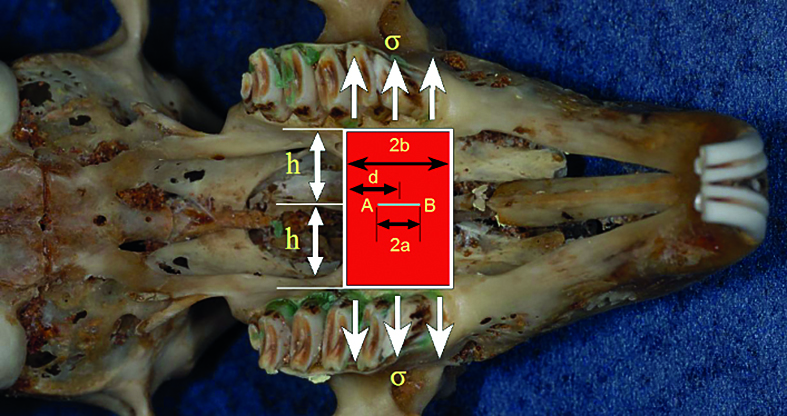

Figure 1. The rift occured in the middle of a finite flat surface
Figure 1. The rift occured in the middle of a finite flat surface

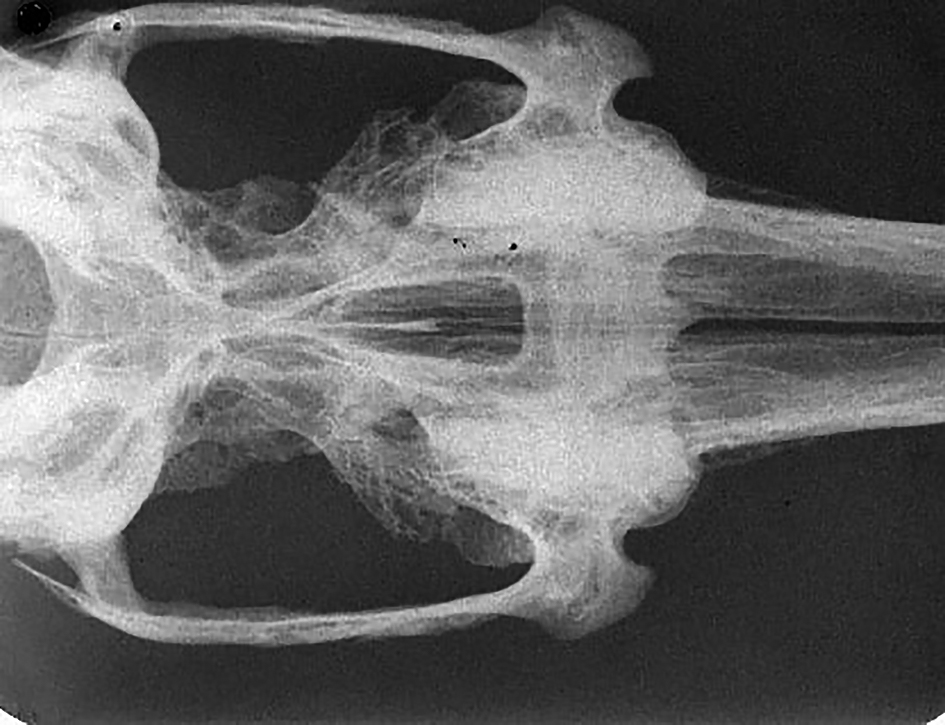

Figure 2. Axial angulation X ray obtained before applying the disjunctor (determining the intermolar distance)
Figure 2. Axial angulation X ray obtained before applying the disjunctor (determining the intermolar distance)

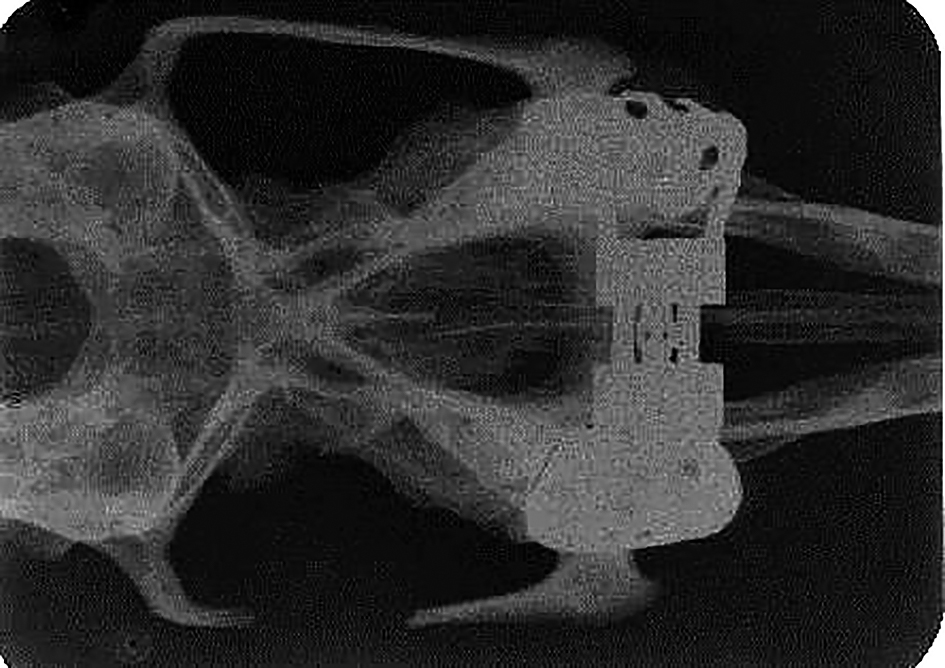

Figure 3. Axial angulation X ray obtained after the active phase of disjunction
Figure 3. Axial angulation X ray obtained after the active phase of disjunction

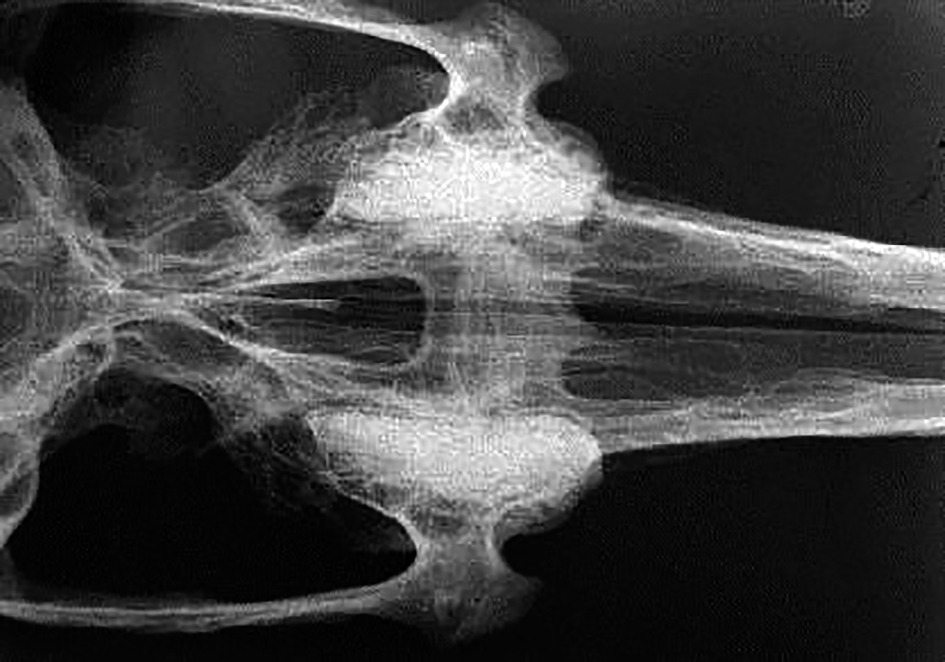

Figure 4. Axial angulation X ray obtained after disjunctor removal
Figure 4. Axial angulation X ray obtained after disjunctor removal


The study was initiated to quantify the effects of disjunction and post-treatment bone changes, after an adequate contention which lasted for three weeks. For the statistical data processing it was assumed that measurements are described by a Gaussian normal distribution. All measurements were carried out by two operators, and subsequent errors were calculated by comparing the first with the second sample to give an average of bone growth of 3.4 mm transversely to the segment being analyzed. All measurements of random error coefficients are placed in acceptable limits.
In all investigated cases, the opening of the medio-palatine suture occurred at an important ratio in the anterior segment rather than in the posterior segment of the suture(8,9,15).

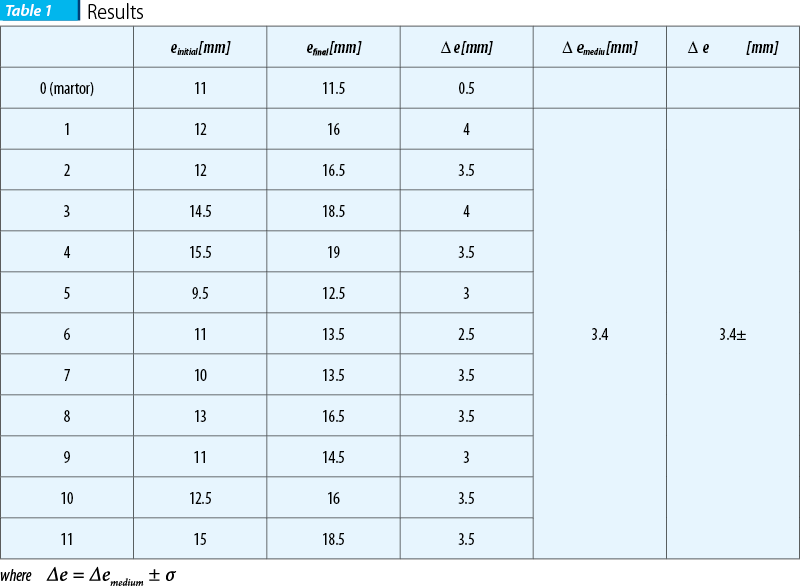

Table 1. Results
Table 1. Results


After analyzing the results, recorded on dried skull rabbit group, post-disjunction and contention, it was found that all coefficients resulting from linear intermolar transversal measurements tended to be significantly increasing.
It is interesting to note that these results are consistent with those reported in the literature reference.
